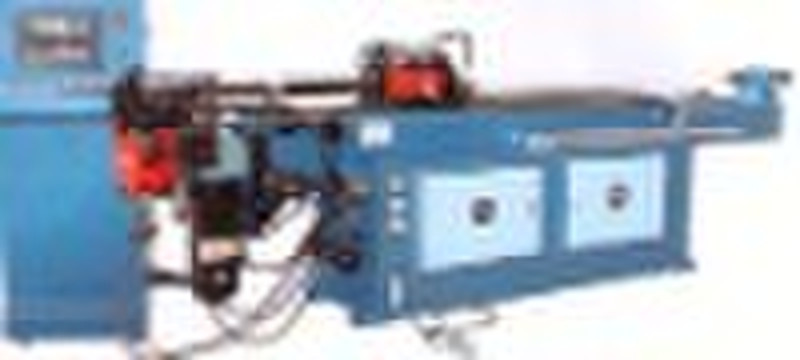

CNC Pipe Bending Machine

Bending Machine Detailed Products Description Auto recognition of machine/work piece dynamic specification quick and good processingSlow core drawing, trolley co-push improve appearance of angle.Chinese/English operation guiding +10.4-inch true color screen + touch screen friendly operation.Diagrammatical programming system: modify the stereo pipe image on the screen and get the processing program easy, quick and accurate programming.Rebound test comparison test on features of different sets of pipesSingle-step adjusting precise observation the deformation of pipe while die testing .Over-all inspection: hydraulic/electrical/driving system, phase absence in motor/reversal, voltage, oil pressure. Auto trouble diagnosis.Password, key, working hours, scale recordings help in production management.Main technical data. ModelHWD25CNC(-2)HWD38CNCHWD50CNCWHD75CNCMax piple O.D.XW.T(mm)Φ25×1.5Φ38×1.5Φ50×1.5Φ75×1.5Range of bending radius(mm)25-15025-20035-25050-280Feeding precision(mm)0.10.10.10.1Feeding speed(m/sec)1.11.11.11.1Max bending angle200°200°200°190°Bending Precision0.1°0.1°0.1°0.1°Bending Speed(°/sec)65°65°44°24°Angle Precision0.1°0.1°0.1°0.1°Angle speed(°/sec)120°120°120°120°Voltage for control valve(V)24242424Power for motor in the oil pump(KW)445.57.5
