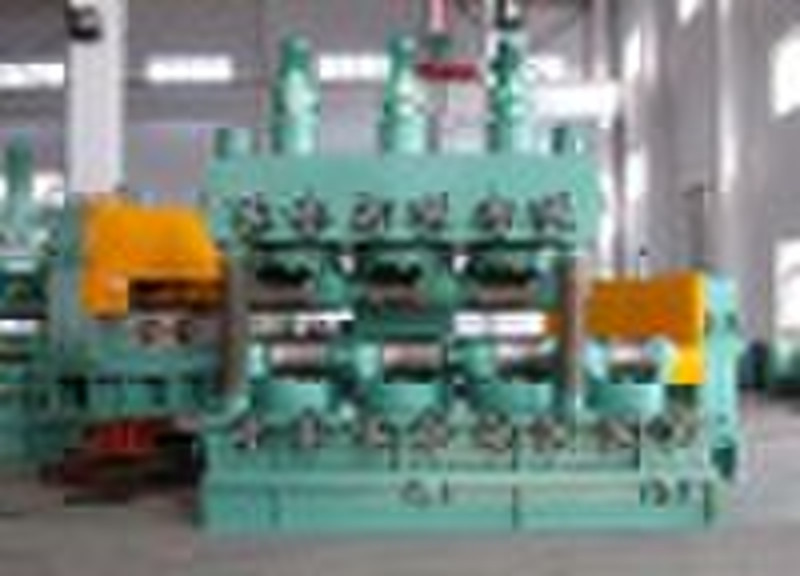

YGJ160A Vertical Pipe straightening machine

Pipe straightening machine YGL vertical straightener is a machine that rolls are horizontal cross disposed and with double travel driving. The die of rollers is elliptical curve, to ensure therer's no defection on the surface of pipe like helical impress andnick while improve section elliplicity, used to straighten camber of all kinds of pipes (rods) Technical parameter No. Spec.Parameter YGJ160A1Pipe OD(mm) 60 1602Pipe WT(mm) 2 163Pipe Max. yield strength(N/mm2) 5204Roller Diameter(mm) 2605Roller Length(mm) 4506Roller Distance(mm) 7207Roller angle adjustment(Degree) 24° 30°8Straightening speed(m/min) 15.79Precision straightening(mm/m) ≤1.510Allowed before bending degree of straightening(mm/m) ≤3011Motor type Y315M-1012Motor power(KW) 5513Main motor rotate speed(rpm) 58614Lifting motor type Y90L-415Lifting motor power(KW) 3×1.516Lifting motor rotate speed(rpm) 140017Cycloid pin wheel reducer type BLY-2215 i=28918Disposal of roller 2-2-2-119Profile size(mm) 8100×2810×318020Total weight(kg) 36000
