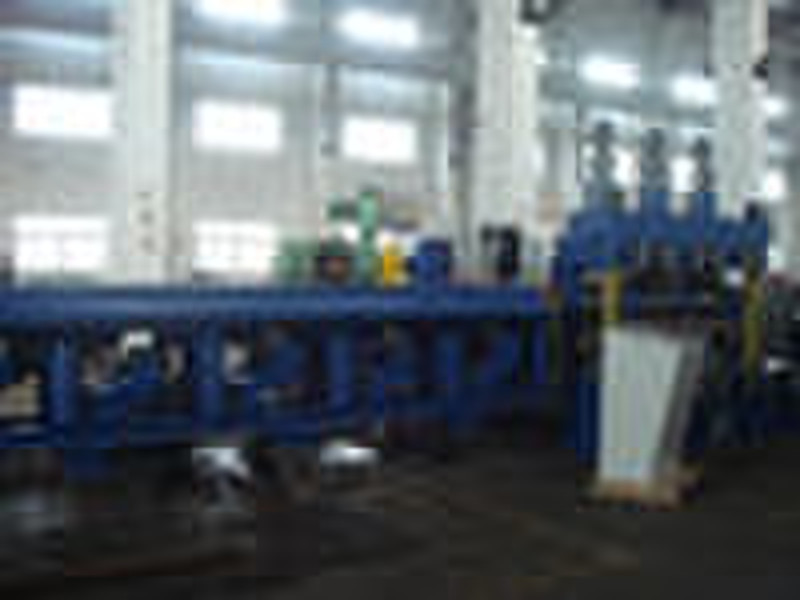

YGJ220A vertical straightening machine

Pipe Straightening machine YGL220A vertical straightener is a machine that rolls are horizontal cross disposed and with double travel driving. The die of rollers is elliptical curve, to ensure therer's no defection on the surface of pipe like helical impress andnick while improve section elliplicity, used to straighten camber of all kinds of pipes (rods). Technical parameter No. Spec.Parameter YGJ220A1Pipe ODmm Φ80 Φ2202Pipe WTmm 4 253Pipe Max. yield strengthN/mm2 5204Roller Diametermm Φ3805Roller Lengthmm 5606Roller Distancemm 9007Roller angle adjustment 28° 33°8Straightening speedm/min 289Precision straighteningmm/m ≤110Allowed before bending degree of straighteningmm/m ≤3011Motor type Z4-280-3212Motor powerKW 16013Main motor rotate speedrpm 75014Lifting motor type Y100L1-415Lifting motor powerKW 3×2.216Lifting motor rotate speedrpm 144017Cycloid pin wheel reducer type BLY-3322 i=473BWY-15 i=1118Disposal of roller 2-2-2-119Profile sizemm 10000×4600×450020Total weightkg 70000
